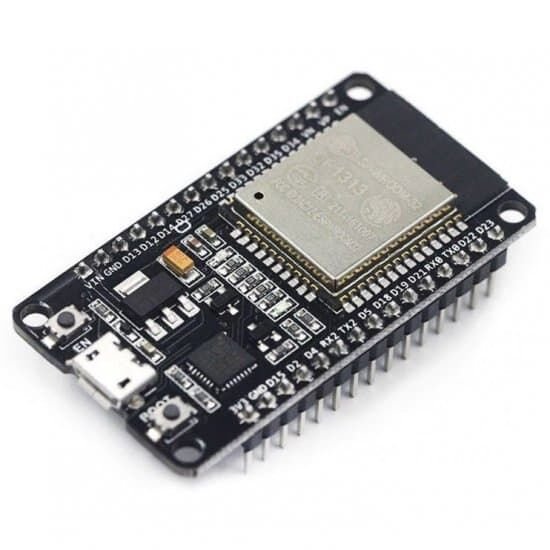

esp32 development board ESP32 wifi Bluetooth IoT development board
Rs: 1020 /- PKR
Availability: 1
Brand: Circuit Pk
Product SKU: CKT-0071
Sepcifications
- ESP-WROOM-32 system
- Supply voltage: 5V
- Current consumption: approx. 80 mA
- WiFi Standard: 802.11 b/g/n
- Bluetooth standard: Bluetooth v4.2 / Bluetooth BLE
- Wi-Fi Security: WEP, WPA/WPA2, PSK/Enterprise, AES/SHA2/Elliptical Curve Cryptography/RSA-4096
- Band: 2.412 GHz to 2.484 GHz
- Operating temperature: -40°C to +125°C
- MicroUSB connector
- 2 buttons: Enable and Boot
- Goldpin connectors, 2.54 mm pitch: for easy connection to the contact board
- Dimensions: 50 x 26 x 8 mm (without connectors)
