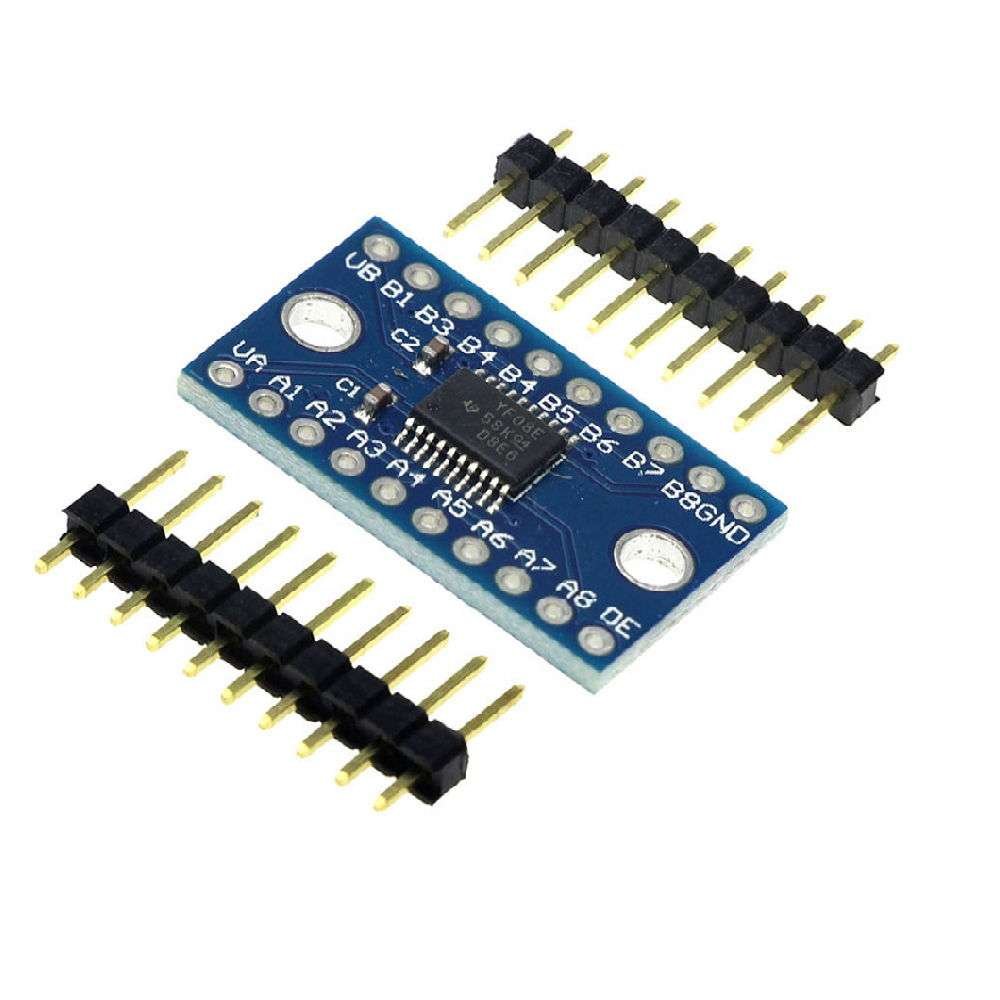

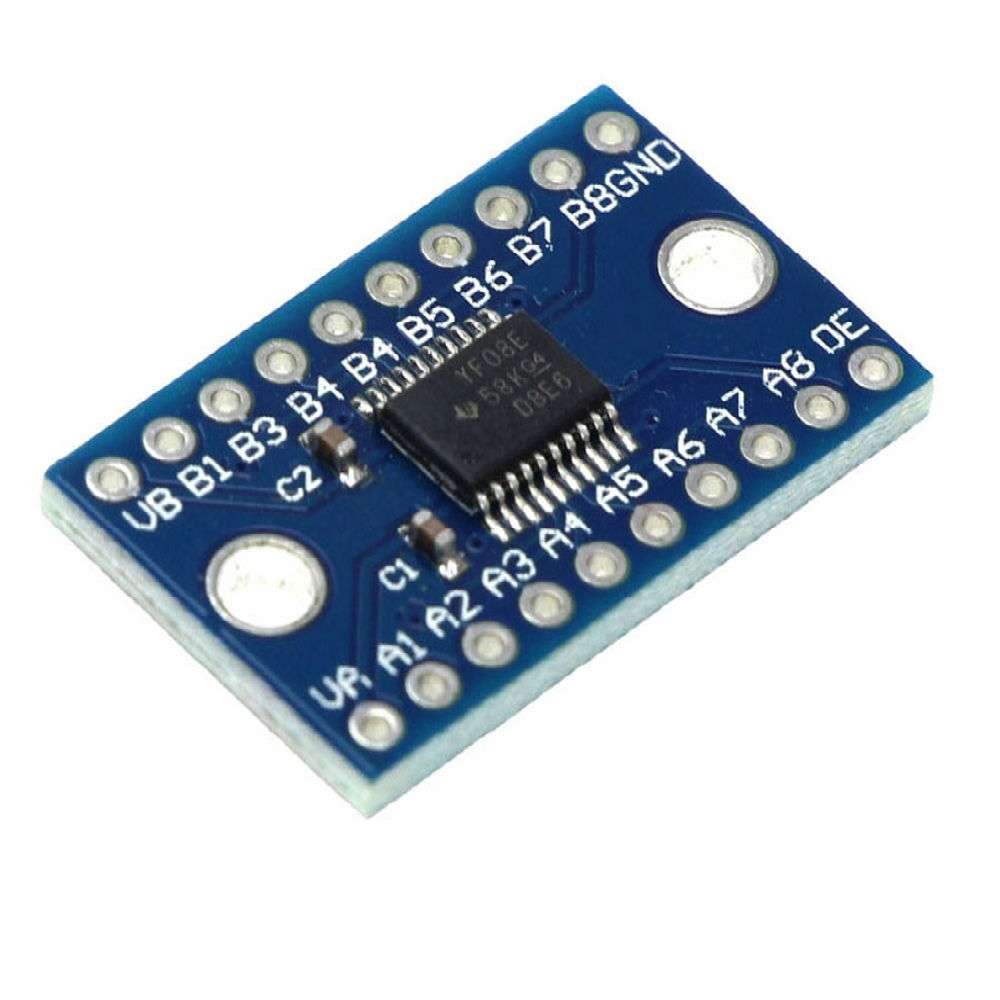

Eight channel Logic Level Shifter Bi-Directional 8 channel logic level shifter

Sepcifications

• 8 channels of logic and high voltage low voltage logic two-way transformation
• Small module, 1.5cm X 1.3cm
• Module with 1 * 12 pin pin, welding
• Module compatible with bread plate, can be used directly put on the bread board
• Directions for use: the high voltage of 5 V low voltage of 3.3 V, for example)
• HV connect 5 v power supply
• LV 3.3 V power supply
• GND connect power anode, both the power of the Commons
