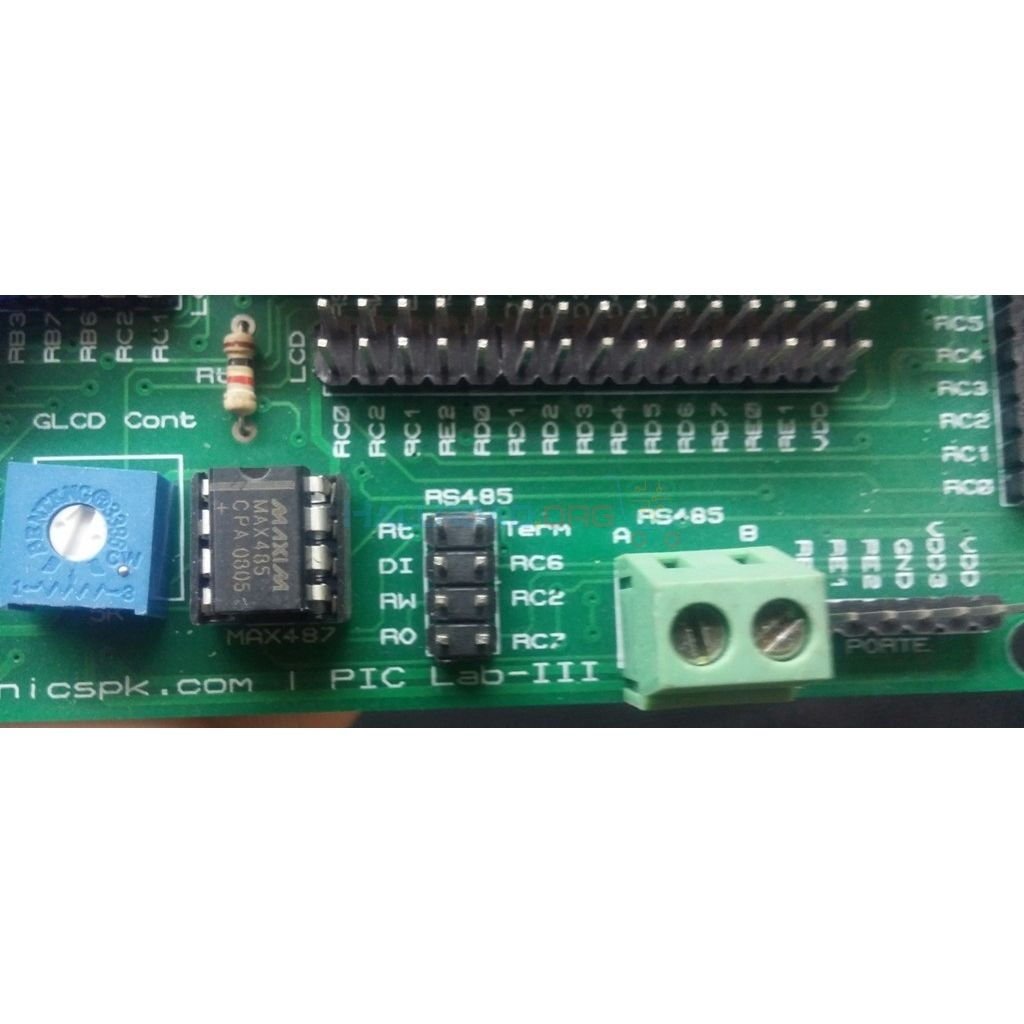

PIC Lab III Microchip PIC Microcontroller Development Board

Sepcifications

1. Supports all Microchip PIC 40 pin PIC microcontrollers ( 18F4550 is preferred)

2. USB 2.0 support circuitry for PIC 18F4550 Microcontroller

3. USART with MAX232 serial communication

4. 10 status LEDs

5. 4 user programmable push switches

6. SD card holder for massive data storage

7. 2 ADC ports with POT as voltage divider and 5.1V zener protection, one of the channels can be

connected as reference volts

8. Buzzer

9. 38KHz IR remote control sensor

10. One wire Dalas protocol (DS1820) temperature sensor network
