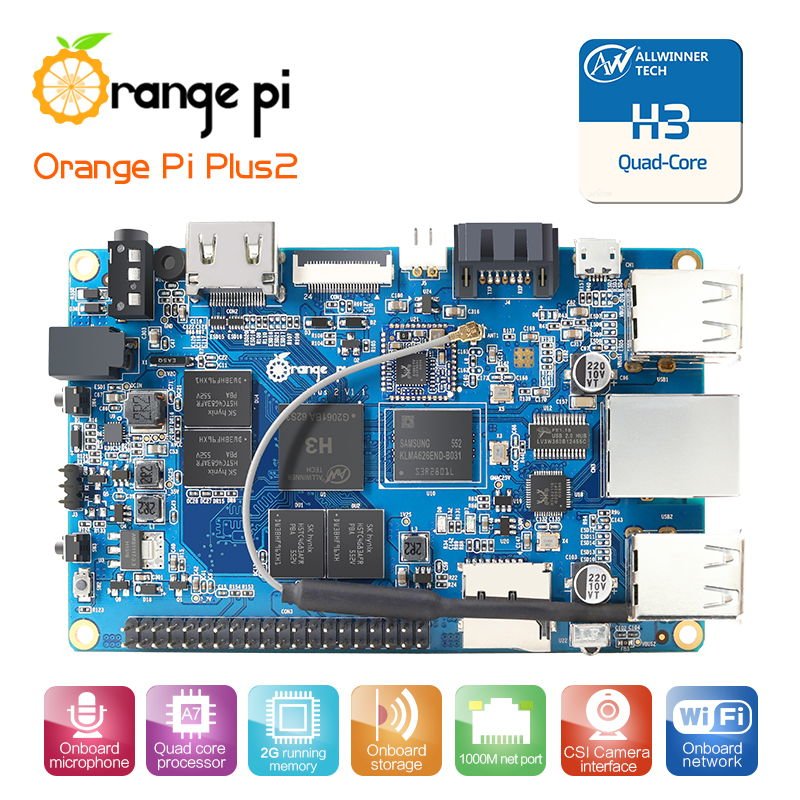

Orange Pi Plus 2 H3 Quad Core 1.6GHZ 2GB RAM 4K

0 reviews

Rs: 10000 /- PKR

Availability: 0

Product SKU: CKT-2177

1. Memory (SDRAM):2GB DDR3 (shared with GPU)

2. Onboard Storage:TF card (Max. 64GB) / MMC card slot , up to 2T on 2.5

3. SATA disk

4. 8GB EMMC Flash

5. Onboard Network:10/100/1000M Ethernet RJ45

17. Supports simultaneous output of HDMI and CVBS

18. Audio Output:3.5 mm Jack and HDMI

19. Power Source:DC input can supply power, but USB OTG input don’t supply power

20. USB 2.0 Ports:Four USB 2.0 HOST, one USB 2.0 OTG

21. Buttons:Power Button(SW4), Recovery Button(SW3), Uboot Button(SW2)

22. Low-level peripherals:40 Pins Header,compatible with Raspberry Pi B+

23. GPIO(1×3) pin:UART, ground.

24. LED:Power led & Status led

25. Other:IR input

26. Supported OS:Android, Ubuntu, Debian, Rasberry Pi Image

6. Onboard WIFI:Realtek RTL8189ETV, IEEE 802.11 b/g/n

7. Video Input:A CSI input connector Camera:

8. Supports 8-bit YUV422 CMOS sensor interface

9. Supports CCIR656 protocol for NTSC and PAL

10. Supports SM pixel camera sensor

11. Supports video capture solution up to 1080p@30fps

12. Audio Input:MIC

13. Video Outputs:Supports HDMI output with HDCP

14. Supports HDMI CEC

15. Supports HDMI 30 function

16. Integrated CVBS
