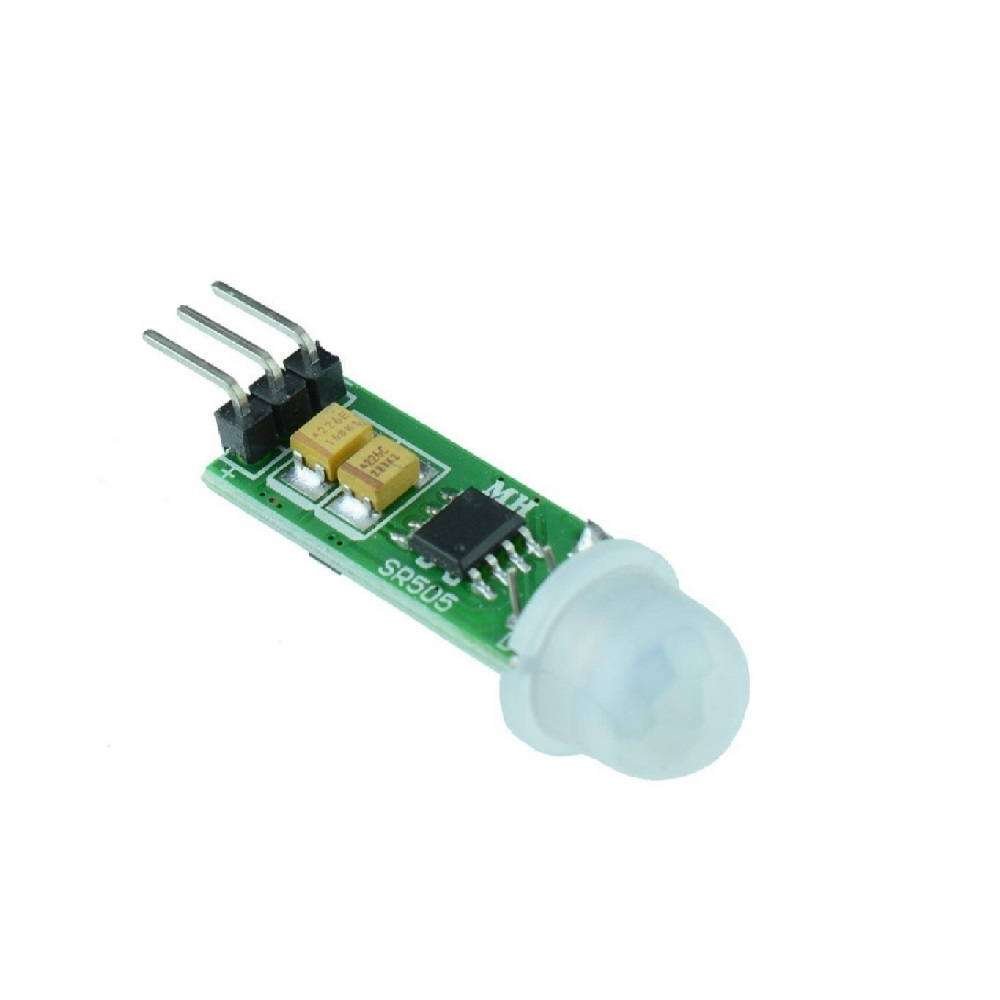

HCSR505 MINI PIR MOTION SENSOR HC SR505

0 reviews
Rs: 445 /- PKR
Availability: 1
Brand: brand
Product SKU: CKT-0148
− +

Add to Cart

Sepcifications

  • Operating voltage range: DC4.5-20V
  • Quiescent Current: <60uA
  • Level output: Gao 3.3V / Low 0V
  • Trigger: reusable trigger (default)
  • Delay Time: The default 8S + -30%
  • Board Dimensions: 10 * 23mm
  • Induction angle: <100 degrees cone angle
  • Sensing distance: 3 meters
  • Working temperature: -20 to +80 degrees
  • Sensor Lens Dimensions: Diameter: 10mm

HC-SR505 Mini PIR Motion Sensor is based on infrared technology and it can automatic control by itself with high sensitivity and high reliability. Because of the minimum size and low-power operation mode, it widely used in various of automatic electronic equipment, especially battery-powered automatic products.
