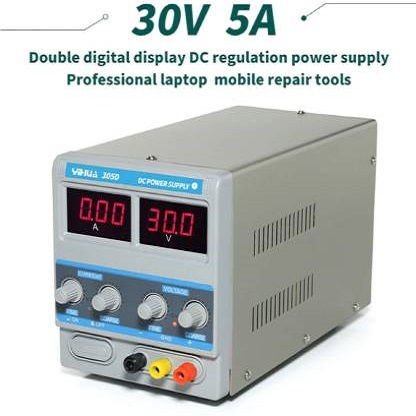

Adjustable Variable DC Power Supply YH305D

Sepcifications

1. Supply power: AC 220-240V, 50Hz/60Hz. Specially designed for the UK and EU.

2. Working temperature: -10~40°C

3. Relative Humidity: <90%

4. Storage Conditions: -10~40°C

5. Relative Humidity: <80%

6. Stable Voltage: Yes

7. Output voltage between 0 and nominal value continuously adjustable

8. Voltage Stability: ≤0.01% +2mV

9. Load Stability: ≤ 0.01% +2mV

10. Recovery Time: ≤100µS

11. Ripple Noise: ≤1 MVRMS(RMS)

12. Temperature Coefficient: ≤ 200PPM/°C

13. Stable Current: Yes

14. Output current between 0 and nominal value continuously adjustable

15. Power Stability: 0.1% + 3mA

16. Load Stability: 0.2% + 3mA

17. Ripple Noise: ≤2mArms(RMS)

18. Product weight：4.6kg/pc

19. Size：13*25.5*15cm
