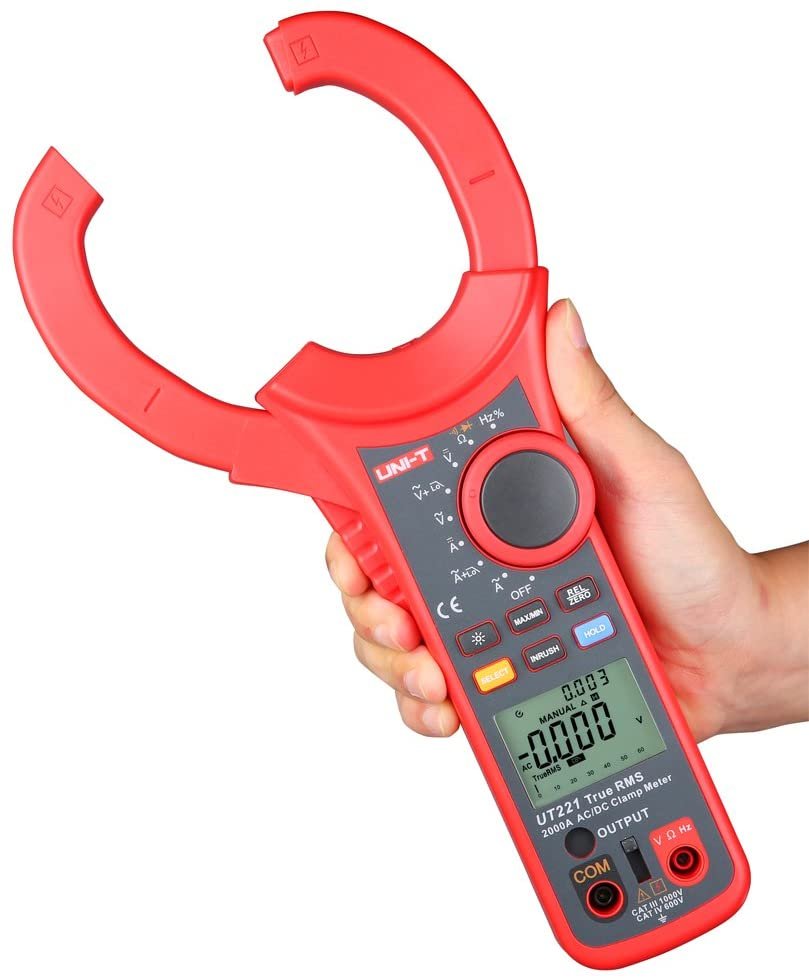

True RMS ACDC Clamp Meter 2000A UNI T UT221

Sepcifications

1. Power: 9V battery (6F22)

2. LCD Display: 43mm x 30mm

3. Dimension: 298mm x 100mm x 48mm

4. Color: Red and Grey

5. Jaw Capacity: 63mm

6. Duty Cycle: 10%~90%

7. DC voltage:

Range: 6.6V/66V/660V/750V

Accuracy: ±(0.8%+1)

8. DC current:

Range: 660A/2000A

Accuracy: ±(2.5%+5)

9. AC voltage:

Range: 6.6V/66V/660V/750V

Accuracy: ±(1.2%+5)

10. AC current:

Range: 660A/2000A

Accuracy: ±(2.5%+5)

11. Resistance:

Range: 660Ω/6.6kΩ/66kΩ/660kΩ/6.6MΩ/66MΩ

Accuracy: ±(1%+2)

12. Frequency:

Range: 66Hz/660Hz/6.6kHz/66kHz/660kHz/6.6MHz/20MHz

Accuracy: ±(0.1%+3)
