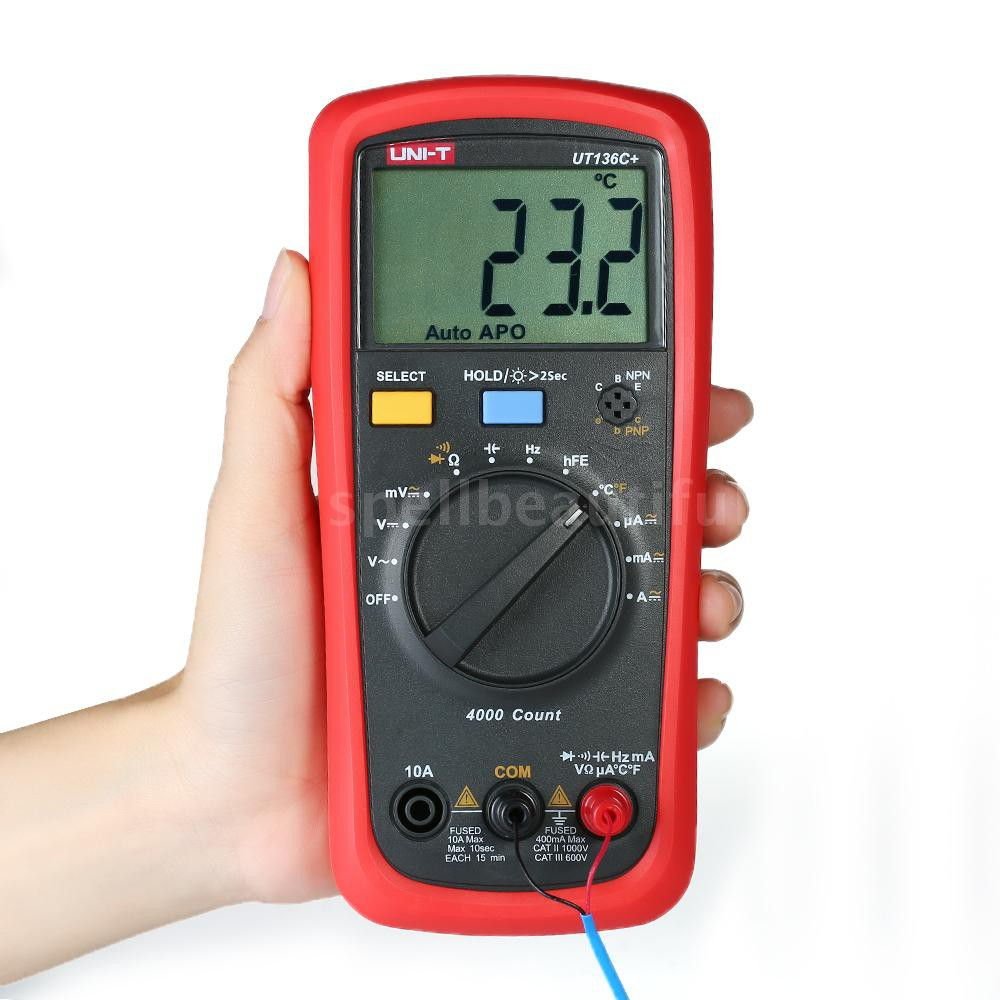

UNI T Digital Multimeter UT136C plus

Sepcifications

1. DIY Supplies: Electrical

2. Display Type: Digital Display

3. Operating Temperature: 0 - 40 ℃

4. Brand Name: UNI-T

5. Dimensions: 175mm x 83mm x 50mm

6. Model Number: UT136C+

7. Measuring Resistance Range: 400ohm/4kohm/40kohm/400kohm/4Mohm/40Mohm

8. Measuring Capacitance Range: 4nF/40nF/400nF/4uF/40uF/400uF/4mF/40mF

9. Operating Mode: Automatic range

10. AC Voltage: 400mV/4V/40V/400V/1000V

11. DC Voltage: 400mV/4V/40V/400V/1000V

12. AC Current: 400uA/4000uA/40mA/400mA/4A/10A

13. DC Current: 400uA/4000uA/40mA/400mA/4A/10A

14. Display count: 4000

15. hFE: YES

16. NCV: only(UT136C+)

17. Temperature: only(UT136C+)

18. Continuity buzzer: YES

19. Diode/transistor: YES

20. Data hold: YES

21. Auto power: YES

22. LCD backlight: YES

23. Power: AA1.5*2
