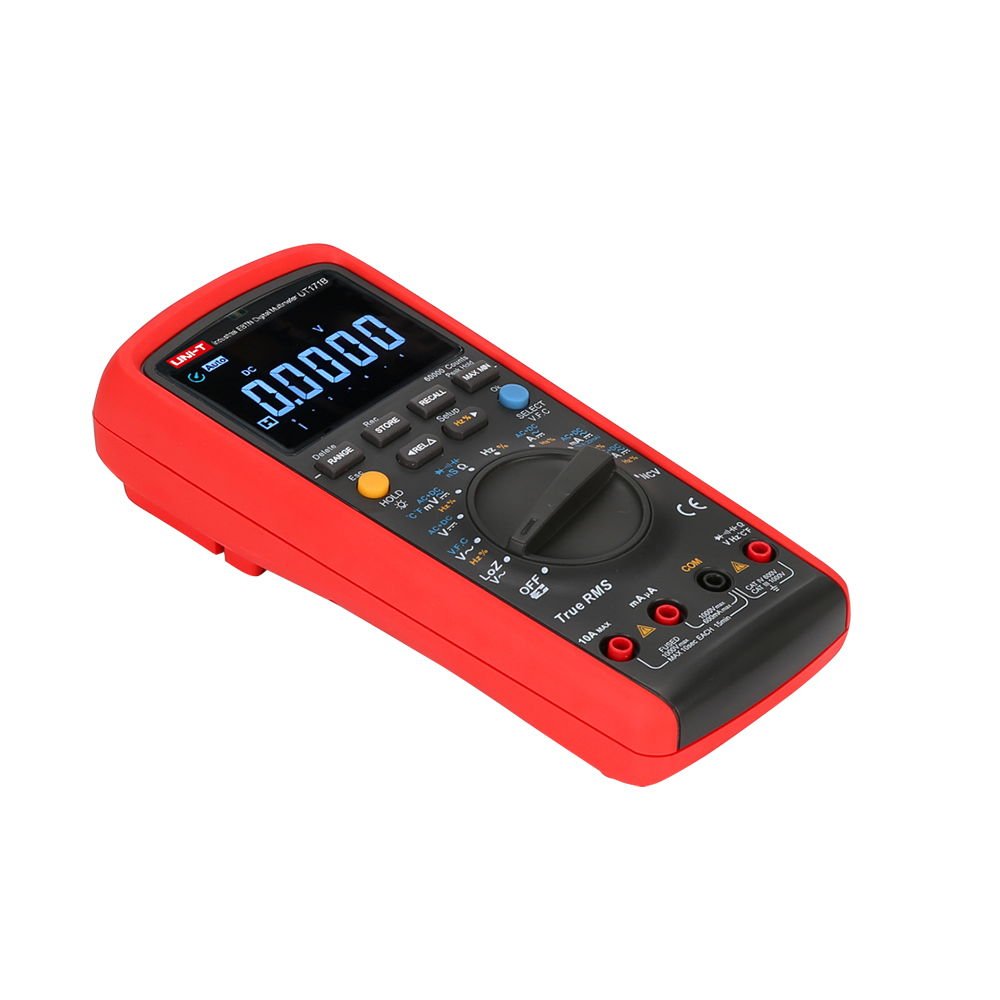

UNI T Industrial True RMS Digital Multimeter UT171B

0 reviews
Rs: 62000 /- PKR
Availability: 1
Brand: Circuit Pk
Product SKU: CKT-1263
− +

Add to Cart

Sepcifications

1. DC Voltage: 600mV/6V/60V/600V/1000V

2. DC Voltage Accuracy: ±(0.025%+5)

3. AC Voltage: 600mV/6V/60V/600V/1000V

4. AC Voltage Accuracy:±(0.4%+40)

5. DC Current: 600μA/6000μA/60mA/600mA/6A/10A

6. DC Current Accuracy:±(0.15%+10)

7. AC Current: 600μA/6000μA/60mA/600mA/6A/10A

8. AC Current Accuracy:±(0.75%+20)

9. Resistance: 600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ

10. Resistance Accuracy: ±(0.05%+2)

11. Capacitance: 6nF/60nF/600nF/6μF/60μF/600μF/6mF/60mF

12. Capacitance Accuracy: ±(2.5%+40)

13. Admittance: 60nS

14. Admittance Accuracy: (±2.5%+40)

15. Frequency: 10Hz~10MHz

16. Frequency Accuracy: ±(0.01%+5)

17. Temperature: -40°C~1000°C

18. Temperature Accuracy: ±(1%+3°C) only up to 230°C with standard accessory thermocouple

19. Display Count: 60000

20. Auto/Manual Range: Yes

21. True RMS: Yes

22. Bandwidth: 100
