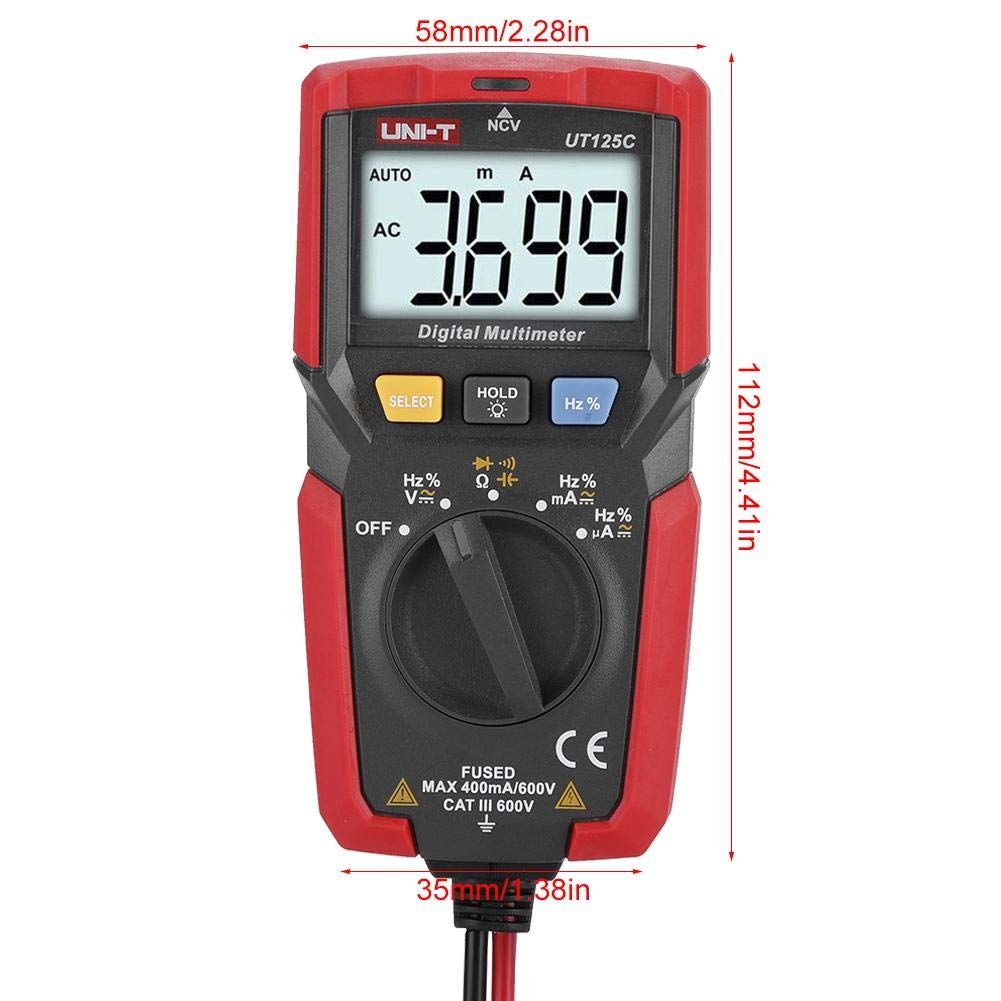

UNI T Digital Multimeter UT125C

0 reviews
Rs: 7200 /- PKR
Availability: 1
Brand: Circuit Pk
Product SKU: CKT-1260
− +

Add to Cart

Sepcifications

1. Brand: UNI-T

2. Model Number: UT125C

3. Material: ABS

4. Display Type: Digital display

5. Max. Display Count: 4000

6. Operating Mode: Auto range

7. Operating Temperature: 0~50℃

8. Storage Temperature: -10~50℃

9. Storage Humidity: ≤75%RH(0~30℃), ≤50%RH(30~40℃)

10. Operating Altitude: 0~2,000m

11. Falling Tester: 2m

12. Safety Level: CAT III 600V

13. DC Voltage Range: 400mV / 4V / 40V / 400V / 600V

14. AC Voltage Range: 4V / 40V / 400V / 600V

15. DC Current Range: 400μA / 4mA / 40mA / 400mA

16. AC Current Range: 400μA / 4mA / 40mA / 400mA

17. Resistance Range: 400Ω / 4KΩ / 40KΩ / 400KΩ / 4MΩ / 40MΩ

18. Capacitance Range: 50nF / 500nF / 5uF / 50uF / 100uF

19. Power Supply: 2 * 1.5V AAA battery (NOT included)

20. Screen Size: 38*23mm / 1.5*0.9in

21. Test Probe Cable Length: 86mm / 3.4in

22. Weight: 211g / 7.4oz (approx.)
