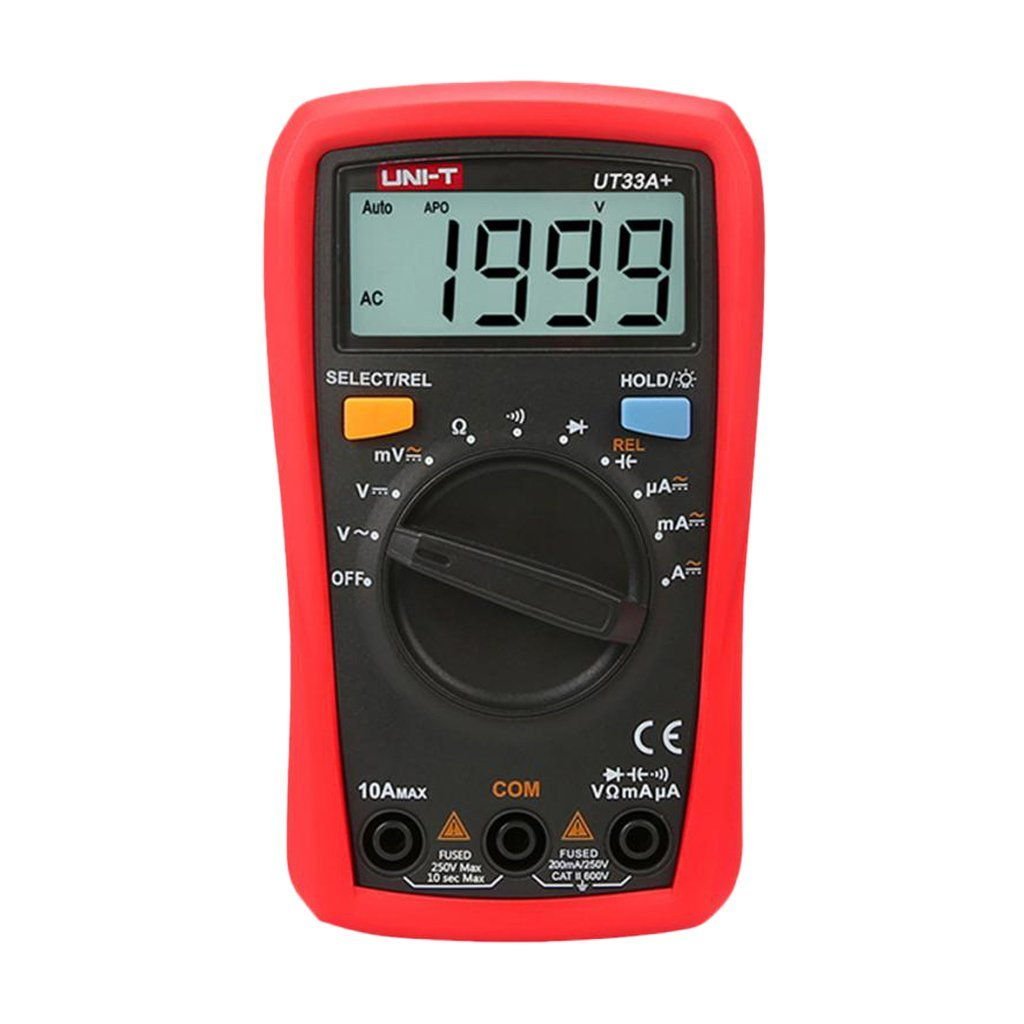

UNI T Palm Size Multimeter UT33A

0 reviews
Rs: 4500 /- PKR
Availability: 1
Brand: Circuit Pk
Product SKU: CKT-1259
− +

Add to Cart

Sepcifications

1. Brand: UNI-T

2. Model: UT33A+

3. Color: Red & gray

4. Working environment: 0-40°

5. Storage environment: -10-50°

6. Monitor: 1999counts

7. Over range indication: “OL” display

8. Battery type: 2 x 1.5v AAA batteries( not included )

9. Backlight display: yes

10. Automatic shutdown: yes

11. Diode Test: yes

12. DC voltage range: 200mV/2000mV/20V/200V/600V

13. DC voltage resolution: 0.1mV/1mV/0.01V/0.1V/1V

14. DC voltage accuracy: ±(0.7%+3)/±(0.5%+2)

15. AC voltage range: 200mV/2V/20V/200V/600V

16. AC voltage resolution: 0.1mV/0.001V/0.01V/0.1V/1V

17. AC voltage accuracy: ±(1%+2)/±(0.7%+3)/±(1.2%+3)

18. DC current: 200μA/2000μA/20mA/200mA/2A/10A

19. DC current resolution: 0.1μA/1μA/0.01mA/0.1mA/0.001A/0.01A

20. DC current accuracy: ±(1%+2)/±(1.2%+5)

21. AC current: 200μA/2000μA/20mA/200mA/2A/10A

22. AC current resolution: 0.1μA/1μA/0.01mA/0.1mA/0.001A/0.1A

23. AC current accuracy: ±(1.2%+3)/±(1.5%+5)

24. Resistance: 200Ω/2kΩ/20kΩ/200kΩ/20MΩ/200MΩ

25. Resistance resolution: 0.1Ω/1Ω/10Ω/100Ω/10kΩ/100KΩ

26. Resistance accuracy: ±(1%+2)/±(0.8%+2)/±(1.2%+3)/±(5%+10)

27. Capacitance range: 2nF/20nF/200nF/2μF/200μF/2mF

28. Capacitance resolution: 0.001nF/0.01nF/0.1nF/1nF/100nF/0.001mF
