Arduino Pro Mini 328 - 3.3 V / 8 MHz
Due to currency devaluation, prices are subjected to change without prior notice. Please confirm the price before placing your order

Arduino Pro Mini 328 3.3 V 8 MHz

Rs: 580 /- PKR
Availability: 1
Brand: Circuit PK
Product SKU: CKT-5455
+

Add to Cart

OR

Sepcifications

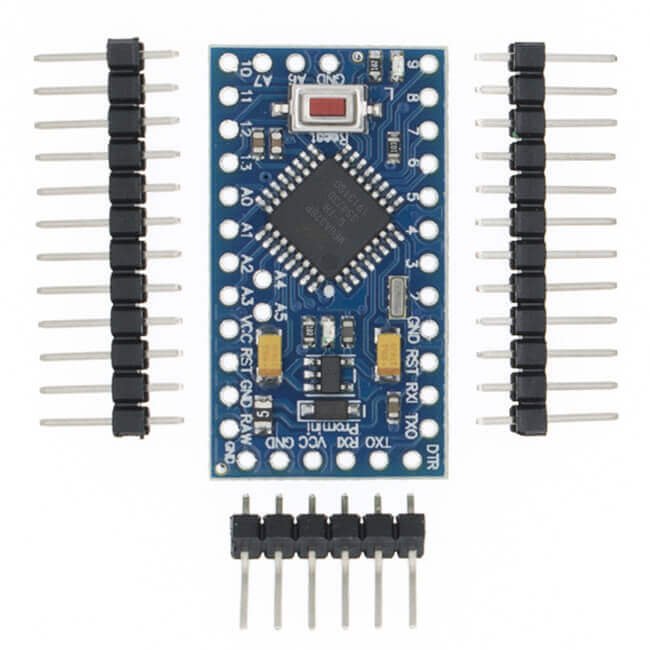

The Arduino Pro Mini is a microcontroller board based on the ATmega328P.

It has 14 digital input/output pins (of which 6 can be used as PWM outputs), 6 analog inputs,
an on-board resonator, a reset button, and holes for mounting pin headers.
A six pin header can be connected to an FTDI cable or Sparkfun breakout board to provide USB power
and communication to the board.
The Arduino Pro Mini is intended for semi-permanent installation in objects or exhibitions.
The board comes without pre-mounted headers, allowing the use of various types of connectors or direct soldering of wires.
The pin layout is compatible with the Arduino Mini.

There are two version of the Pro Mini. One runs at 3.3V and 8 MHz, the other at 5V and 16 MHz.
The ATmega328P has 32 kB of flash memory for storing code (of which 0.5kB is used for the bootloader).
It has 2 kB of SRAM and 1kBs of EEPROM.
The Arduino Pro Mini has a number of facilities for communicating with a computer, another Arduino, or
other microcontrollers.
The ATmega328P provides UART TTL serial communication, which is available on digital pins 0 (RX) and 1 (TX).
The Arduino software includes a serial monitor which allows simple textual data to be sent to and from the Arduino board via a USB connection.
Microcontroller                   ATmega328P *
Board Power Supply           3.35 -12 V (3.3V model) or 5 - 12 V (5V model)
Circuit Operating Voltage   3.3V or 5V (depending on model)
Digital I/O Pins                    14
PWM Pins                            6
UART                                   1
SPI                                       1
I2C                                       1
Analog Input Pins               6
External Interrupts              2
DC Current per I/O Pin      40 mA
Flash Memory                   32KB of which 2 KB used by bootloader *
SRAM                                2 KB *
EEPROM                            1 KB *
Clock Speed                      8 MHz (3.3V versions) or 16 MHz (5V versions)
