3S 20A 12.6V Li-ion Lithium Battery 18650 Charger Protection Board PCB BMS Cell Charging Protecting Module
Pakistan
More

3S 20A 12.6V Lion Lithium Battery 18650 Charger Protection Board PCB BMS Cell Charging Protecting Module

0 reviews | Write a review
Rs: 150 /- PKR
Availability: 1
Brand: Circuit PK
Product SKU: CKT-18650
− +

Add to Cart

OR

Sepcifications

  • For nominal voltage 3.6V 3.7V lithium battery(Including 18650,26650, lithium polymer batteries)
  • Product Size: 64mmx20mmx3.4mm
  • Material:Metal
  • Charging voltage: 12.6V
  • Maximum output current: 20A
  • Maximum output power / charging power: 252W.

  • Precautions:

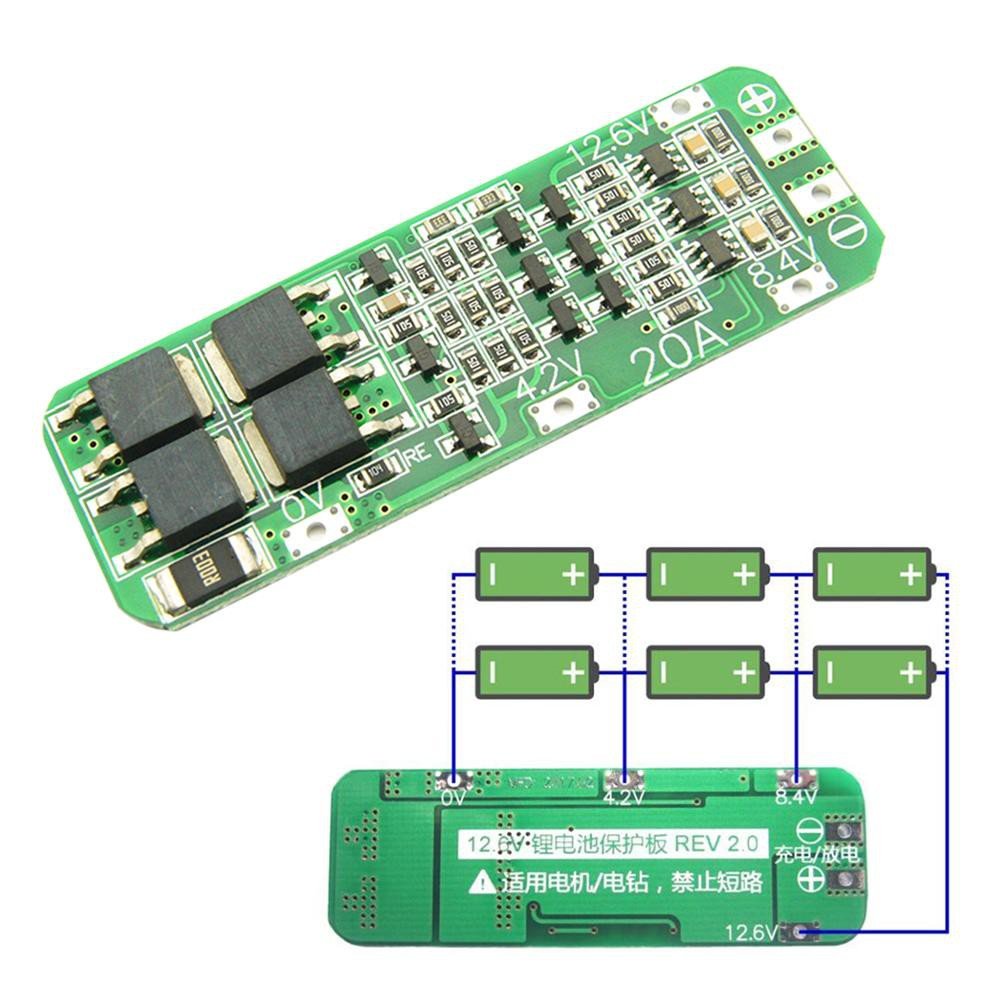

    • Strictly according to the diagram wiring: 0V/4.2V/8.4V/12.6V,Otherwise it will cause damage to the chip
    • After connection,it need to first charge activation, then will have the output.
  • For nominal voltage 3.6V 3.7V lithium battery(Including 18650,26650, lithium polymer batteries)
  • Product Size: 64mmx20mmx3.4mm
  • Material:Metal
  • Charging voltage: 12.6V
  • Maximum output current: 20A
  • Maximum output power / charging power: 252W

  • Precautions:

    • Strictly according to the diagram wiring: 0V/4.2V/8.4V/12.6V,Otherwise it will cause damage to the chip
    • After connection,it need to first charge activation, then will have the output.
