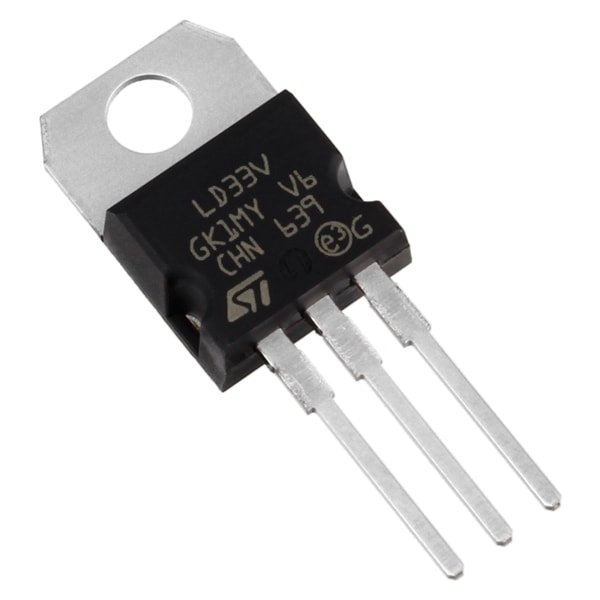

LD1117V33 TO 220 VOLTAGE REGULATOR LD1117 3.3 LD1117AV33

0 reviews | Write a review

Rs: 90 /- PKR

Availability: 1

Brand: Circuit PK

Product SKU: CKT-2445

Sepcifications

The LD1117 is a LOW DROP Voltage Regulator

able to provide up to 800mA of Output Current,

available even in adjustable version (Vref=1.25V).

Concerning fixed versions, are offered the

following Output Voltages: 1.2V,1.8V,2.5V,2.85V,

3.0V 3.3V and 5.0V. The 2.85V type is ideal for

SCSI-2 lines active termination.

Description
Reviews (1)

The device is supplied in: SOT-223, DPAK, SO-8 and TO-220. The SOT-223 and DPAK surface mount packages optimize the thermal characteristics even offering a relevant space saving effect. High efficiency is assured by NPN pass transistor. In fact in this case, unlike than PNP one, the Quiescent Current flows mostly into the load. Only a very common 10µF minimum capacitor is needed for stability. On chip trimming allows the regulator to reach a very tight output voltage tolerance, within ± 1% at 25°C. The ADJUSTABLE LD1117 is pin to pin compatible with the other standard. Adjustable voltage regulators maintaining the better performances in terms of Drop and Tolerance.
