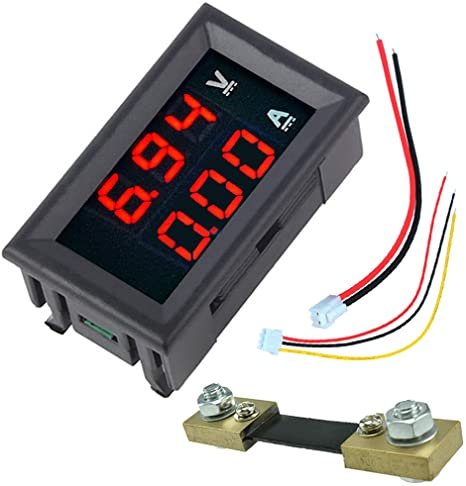

DC 100V 100A DUAL DIGITAL VOLTMETER AMMETER LED AMP VOLT METER CURRENT SHUNT
Rs: 1800 /- PKR
Availability: 1
Brand: Circuit PK
Product SKU: CKT-2413
Sepcifications
Power Supply (Measure Voltage): DC 4.5-30V
Measure Voltage Range:0-100v
Measure voltage < 10V,Min Resolution: 0.01V
Measure voltage >10V, Min resolution: 0.1V
Measure Current: 100A forward current ( more than 10A need shunt)
Current Resolution: 0.01A
Operating Current: <20mA
Display: 0.28 "LED monochrome（red and red)
Dimensions: 48 x 29 x 21 mm
Cutting Size: 45 x 26 mm
Measurement rate: ≥ 500mS / times
Accuracy: 1% (± 1 digit )
Operating Temperature: -10°c ~ +65°c
Operating Humidity: 10 ~ 80% (non-condensing)
Working pressure: 80 ~ 106kPa
