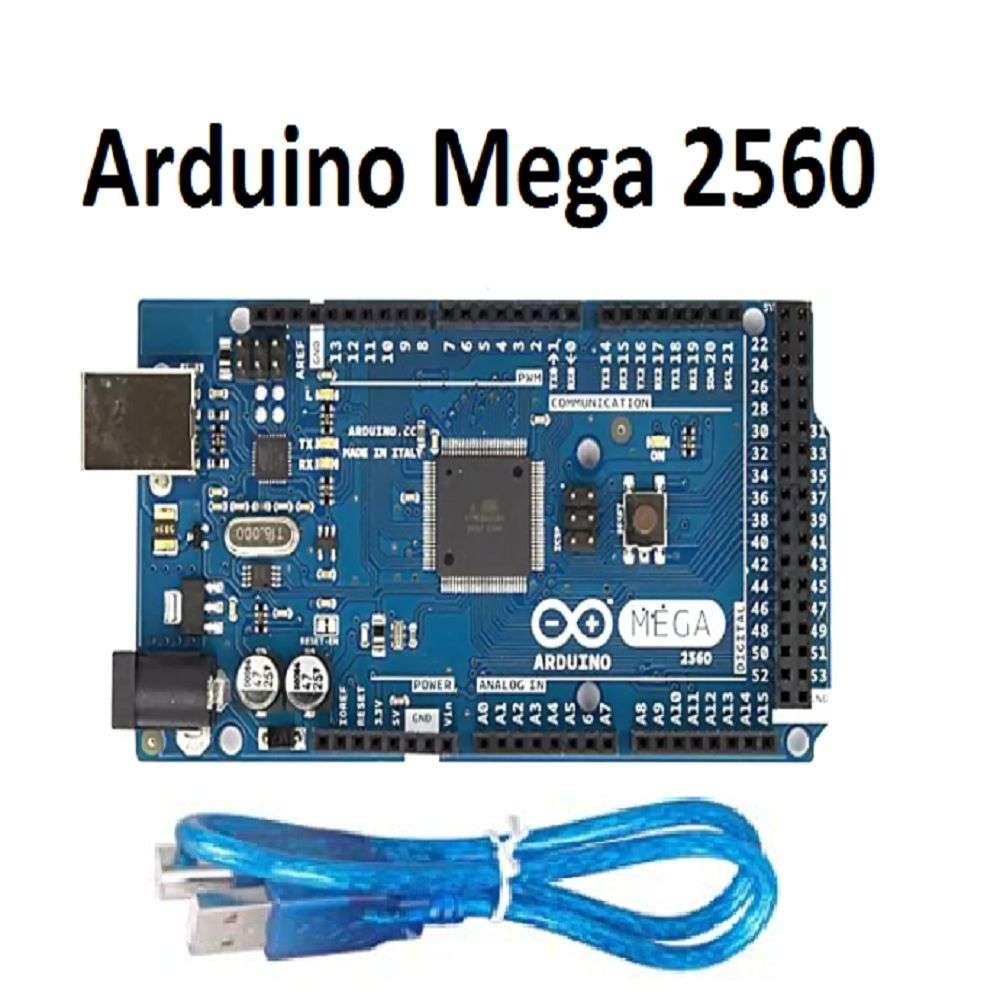

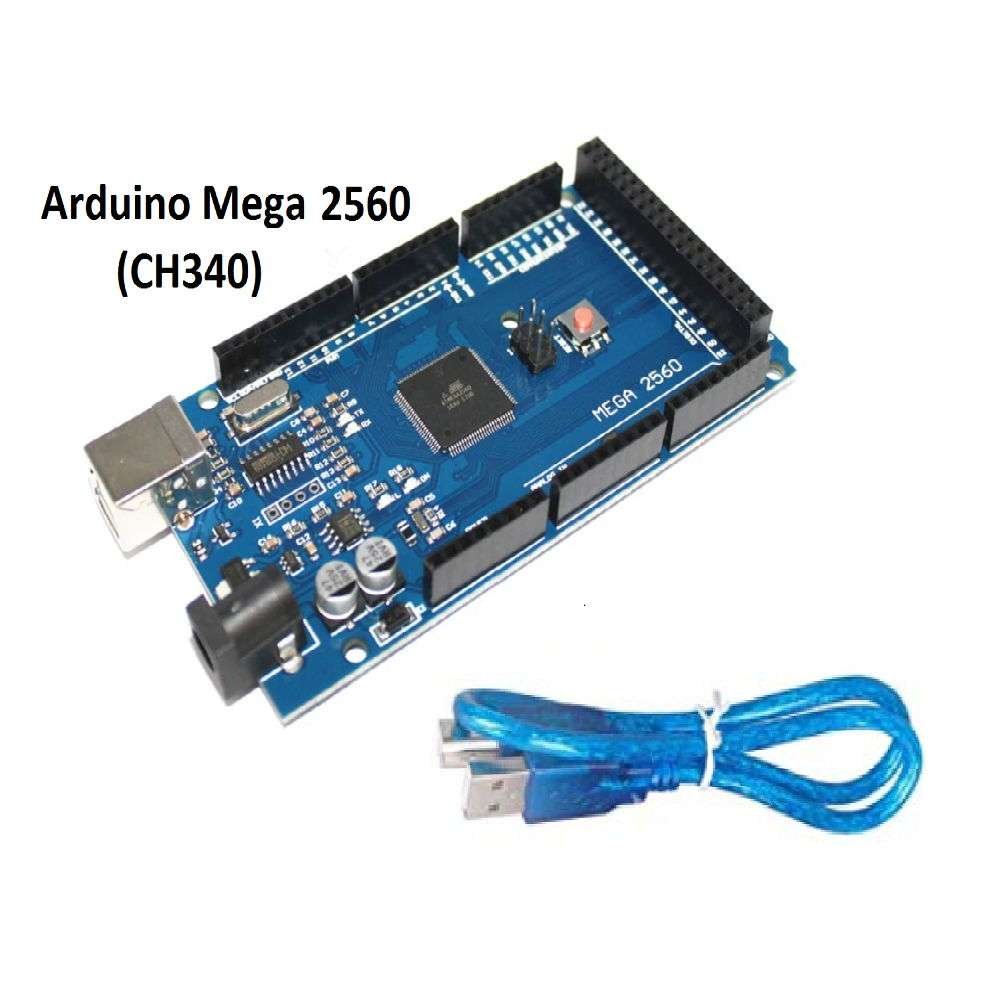

Arduino Mega2560 Mega 2560 with cable
Due to currency devaluation, prices are subjected to change without prior notice. Please confirm the price before placing your order

Arduino Mega2560 Mega 2560 with cable

Rs: 3600 /- PKR
Availability: 1
Brand: Circuit Pk
Product SKU: CKT-0240
+

Add to Cart

OR

Sepcifications

  • Microcontroller:ATmega2560
  • Operating Voltage:5V
  • Input Voltage (recommended):7-12V
  • Input Voltage (limits):6-20V
  • Digital I/O Pins:54 (of which 15 provide PWM output)
  • Analog Input Pins:16
  • DC Current per I/O Pin:40 mA
  • DC Current for 3.3V Pin:50 mA
  • Flash Memory:256 KB of which 8 KB used by bootloader
  • SRAM:8 KB
  • EEPROM:4 KB
  • Clock Speed:16 MHz





The Arduino Mega 2560 is a microcontroller board based on the ATmega2560. According to arduino mega 2560 pinout diagram, it has 54 digital input/output pins (of which 15 can be used as PWM outputs), 16 analog inputs, 4 UARTs (hardware serial ports), a 16 MHz crystal oscillator, a USB connection, a power jack, an ICSP header, and a reset button. It contains everything needed to support the microcontroller; simply connect it to a computer with a USB cable or power it with a AC-to-DC adapter or battery to get started. Arduino Mega 2560  programming can be done using Arduino Software called IDE which supports C programming.
