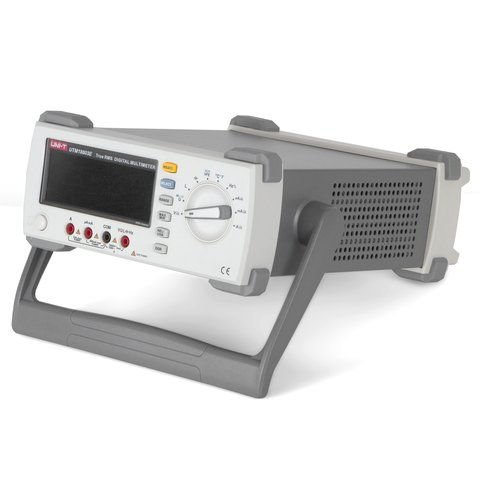

UNI T Bench Top Digital Multimeter UT8803E

0 reviews | Write a review

Rs: 60000 /- PKR

Availability: 1

Brand: Circuit Pk

Product SKU: CKT-1345

Sepcifications

1. Model: UT8803E

2. DC voltage (V): 1000V

3. AC voltage (V): 750V

4. DC current (A): 20A

5. AC current (A): 20A

6. Resistance (Ω): 60MΩ

7. Capacitance (F): 6mF

8. Frequency (Hz): 600Hz~20MHz

9. Duty cycle (%): 5%~95%

10. Inductance (H): 100H

11. Temperature (°C/°F): -40℃~1000℃, -40℉~1832℉

12. Display count: 6000

13. Interface: USB Device

14. Range: Auto

15. True RMS/diode: √

16. Frequency response (Hz): Up to 100kHz

17. SCR test: 9V, can measure unidirectional and bidirectional SCR (UT8803E) Continuity

buzzer/data hold: √

18. MAX/MIN: √

19. USB interface/LCD backlight: √

20. Input impedance for DCV: 600mV range: around 3GΩ; all other ranges: around 10MΩ

21. AC+DC measurement: √

22. Power: 100V/120V/220V/240V ±10%, 47Hz~63Hz

23. Display: EBTN LCD

24. Product net weight: 3.09kg

25. Product size: 265mm x 110mm x 320mm

Description
Reviews (1)

UNI-T UT8803E Benchtop Digital Multimeter for current and voltage AC / DC, resistance, power, frequency, period of duty, inductance. This optical multimeter UT 8803E monitors temperature measurements and checks for diode, transistor, and continuity, SCR thyristor test. Have a large LCD monitor on the EBTN and a USB interface. UNI T best multimeter benchtop features protection against overloads for all ranges.
