12V LIQUID WATER LEVEL CONTROLLER SENSOR MODULE WATER TANK FULL DEVICE OFF MOTOR

12V LIQUID WATER LEVEL CONTROLLER SENSOR MODULE WATER TANK FULL DEVICE OFF MOTOR

Rs: 1190 /- PKR
Availability: 1
Brand: Circuit PK
Product SKU: CKT-2325
+

Add to Cart

OR

Sepcifications

This product is based on the actual needs of the family factories and pumping and the detection of the pool (water tower) to control the water level to achieve control.

With a small, simple wiring, low power consumption, high switching capacity, interference is strong, functional stability characteristics.

Automatically open when you can stably pool (water tower) water pump (solenoid) pumping,automatically stops the pump (solenoid) when full of water.

Local flooding can also be used for automatic rain drainage, such as garages, basements, etc

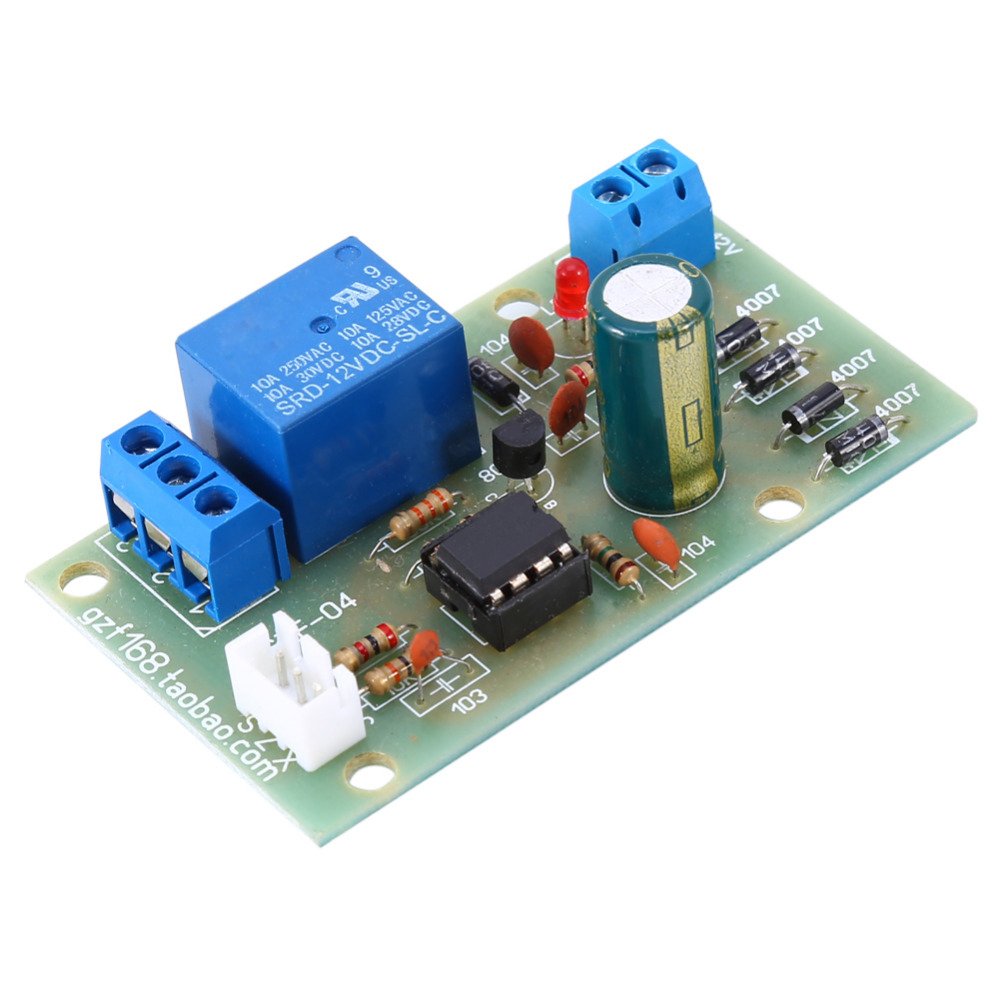

Board Size: 7cm x 4cm(L*W)

Material: Electronic Components

Color: Blue

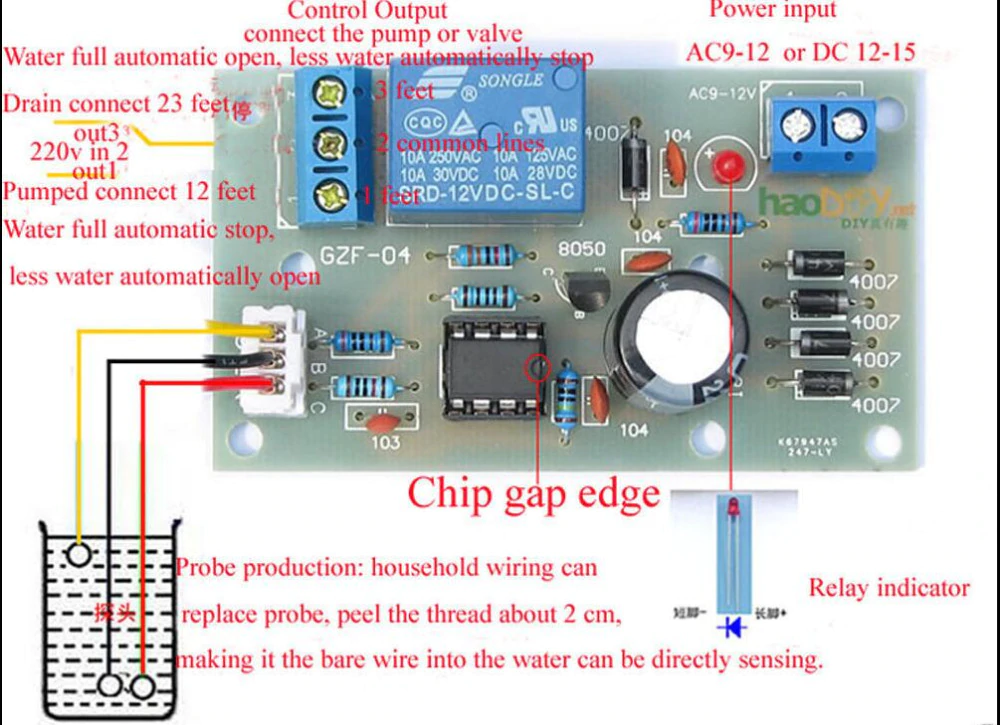

The product does not need to buy another probe, using household wiring can replace probe

work voltage: 9v to 12V
controller PCB size:42*69mm
sensor PCB size:86*21mm
Three color LED indicate low (red), medium (yellow), high (green) water, low water pumping or high-water pumping can be switched on and off when you press the function switch bounce (ie not pressed) when low water relay (external pumps work), start adding water, the water level rises to a high level relay off (pump stopped working) until the water level drops below the low water level again relay again, the above process cycle. This feature is used in automatic water equipment, allowing the water level is maintained at a low level and high level between. When the function switch when pressed, when the high-water relay (external solenoid valve), begins to drain, the water level drops below the low water relay off (solenoid valves stop working) until the water level rises again to the high-water relay pull again, the above process cycle. This feature is used in automatic drainage device, allowing the water level is maintained between low water and high water level.
